FloPlast Ring Seal Soil Double Branch - 92.5 Degree x 110mm Grey
Code | SP230G |
---|

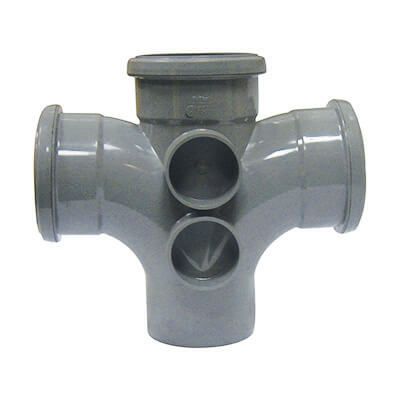

Used to bring two horizontal pipe runs together into a main vertical pipe, usually when connecting two WC's into a main soil pipe. The most common use for this is when an ensuite bathroom is separated from a main bathroom by a dividing wall, with a central soil pipe running vertically between them. It is also commonly used in public buildings where ladies and gentlemen's toilets are positioned back to back in the building design.

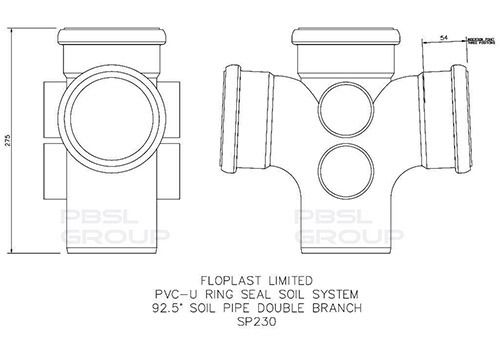

The top three connections are ring seal sockets, the bottom of the branch is a spigot that can be fitted into another ring seal socket.
There are two circular waste bosses on either side of the branch that can be drilled out and used in conjunction either with our rubber boss adaptors or our solvent boss adaptors to introduce a waste pipe into the soil stack.
RING SEAL SOIL SYSTEMS
Ring seal soil pipes are the most commonly used soil system in domestic and non-industrial commercial properties in the UK.
Our FloPlast ring seal soil system is compatible with most other soil systems that are manufactured to British/European standard.
To install any pipe or fitting into another ring seal fitting, first make sure the end of the pipe has been chamfered. Clean off any dirt or debris and lubricate the joint with silicon lubricant. Push the pipe in squarely until resistance is felt, then withdraw it very slightly to allow for any potential system expansion.
