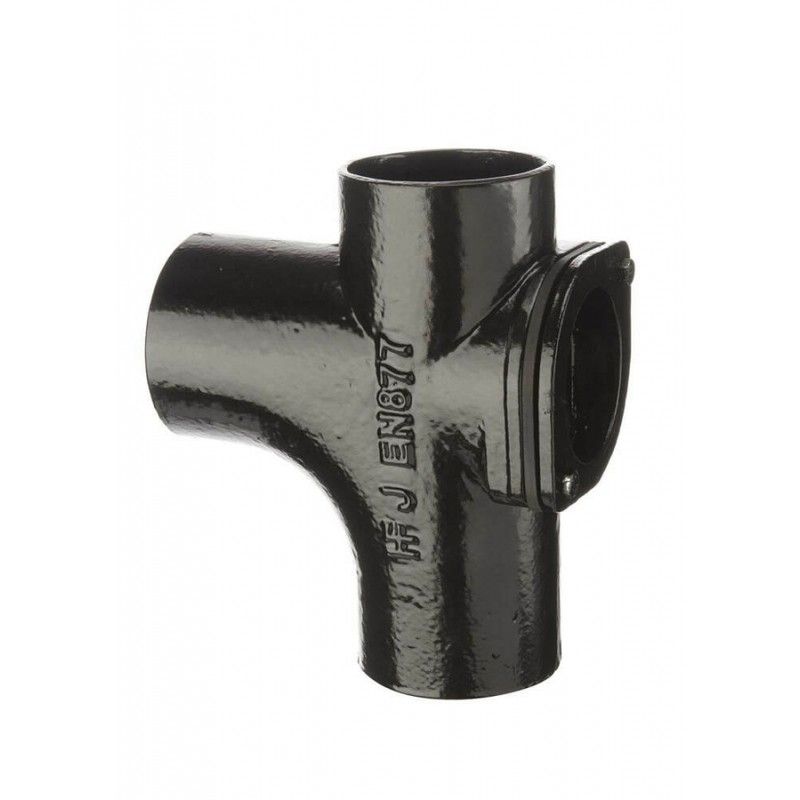

Push Fit Cast Iron Soil Access Branch - 92.5 Degree x 100mm
| Code | TX4032 |
|---|---|
| EAN Code | 0691208238779 |
| Angle | 92.5 Degree |
| Brand | Hargreaves Traditional Express |
| Colour | Black |
| Material | Cast Iron |
| Life Expected | 100 Years + |
| Specification | BS 416/2 (Cast Iron) and BS EN 681 (Gaskets) |
| Size | 100mm |
This 92.5 degree branch incorporates an access point that allows the soil pipe to be rodded in either direction. It is often sited where at the point on the external wall where an internal soil pipe connects to the outside soil and vent pipe.
To use the access point, simply remove the access door by undoing the bolts. This could potentially release any blockage above the door so it is always advisable to stand aside at this point!
The 92.5 degree angle of the branch gives a 2.5 degree fall which promotes a self-cleansing flow within the soil pipe.
As our push fit cast iron soil pipes and fittings are all plain ended, sockets are required to connect this branch to a pipe.
All of our push fit cast iron soil fittings are treated to a factory black two-pack gloss paint finish. The whole range is manufactured in grey cast iron to BS EN 1561.
This soil pipe range is particularly well-suited to installations in public buildings, listed buildings and conservation projects. It is 100% recyclable. Click here to view or download full installation instructions.
