How To Use Push Fit Plumbing And Fittings

WHAT IS A PUSH-FIT FITTING?

If you’d like to find out more about push-fit fittings, take a look at our helpful guide.

CAN YOU USE PUSH-FIT WITH COPPER?

Plastic push-fit fittings, which were originally designed for use with plastic pipe systems, are also suitable for copper pipes (although they cannot be used with stainless steel or chrome-plated copper pipes.)

HOW TO INSTALL PUSH-FIT FITTINGS

Push-fit fittings have a quick and easy installation time, regardless of whether you're using plastic or copper. Follow the steps below along with images.

ON PLASTIC PIPES

1. Measure and mark the required length. (Image 1)
2. Cut the pipe using a pipe cutter – do not use a hacksaw, as cutting imperfections can greatly increase the risk of leaks. (Image 2 & 3)
3. Fit the pipe insert into the pipe. (Image 4)
4. Measure and mark the correct insertion depth on the pipe. (Image 5)
5. Insert the pipe into the fitting, ensuring it passes through the O-ring until it reaches the stop point and correct insertion depth. (Image 6)
6. Check that the assembly is secure by pulling the pipe away from the fitting. (Image 7)
7. Use red or blue collet clips to help identify whether it’s a hot or cold circuit. (Image 8)

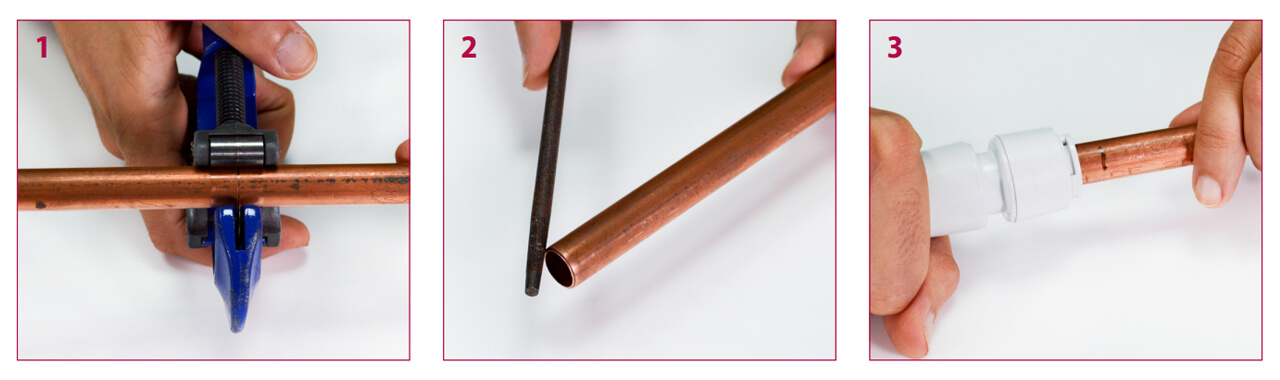

ON COPPER PIPES

1. Firstly, measure and mark the required length. Ensure the pipe is cut with a rotational pipe cutter. Do not use a hacksaw.
2. To reduce the risk of leaks, use a file to ensure you remove any burrs or swarf from the end of the pipe.
3. Simply insert the fitting and ensure that the correct insertion depth is achieved.

BENEFITS OF PUSH-FIT FITTINGS

Push-fit fittings offer various advantages and may be utilised in a wide range of applications:

• Perhaps the most significant advantage is that they are quick and easy to connect. In an emergency, they can be used to swiftly cap or repair a pipe.
• They are an excellent choice to join pipes that create a watertight seal without the need for solder, clamps, unions, or adhesive.
• When employing push-fit fittings, pipes do not need to be completely dry. In contrast, CPVC and PVC must be bone-dry before solvent gluing, and copper pipes must be bone-dry before torch soldering.
• They are available in a variety of materials for a variety of purposes; almost every form of pipe has a corresponding push-fit fitting.
• They may be readily removed and repositioned as needed. If the connection is only intended to be temporary, the fitting can be used and quickly withdrawn from the pipe.
