FloPlast Inspection Chamber Set Block Paving - 300mm Diameter
| Code | M300MH2 |
|---|---|
| EAN Code | 0691208219129 |
| Brand | FloPlast and Clark-Drain |
| Colour | Black |
| Material | PVC/ Polypropylene Cover |
| Chamber Type | For Block Paving |
| Dimension | Height to Top of Cover 800mm |
| Specification | BS 7158 |
| Size | 300mm Diameter |

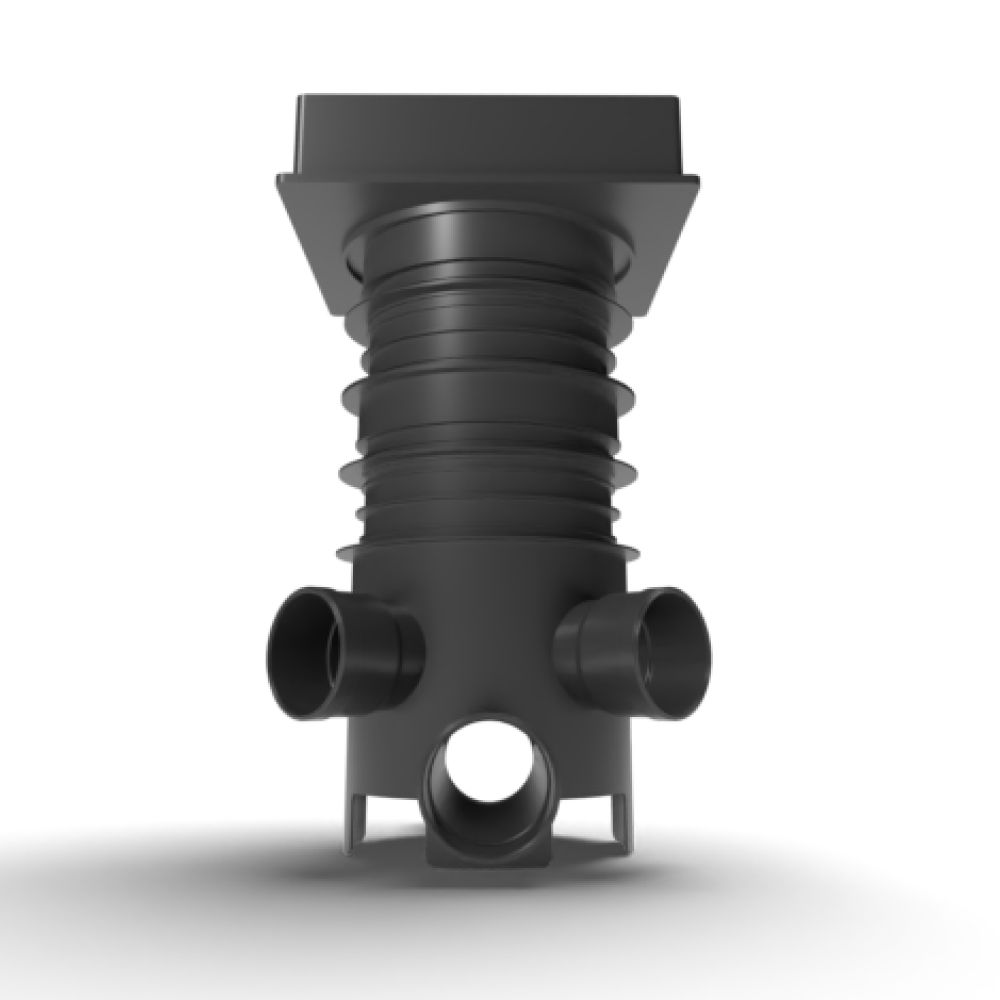

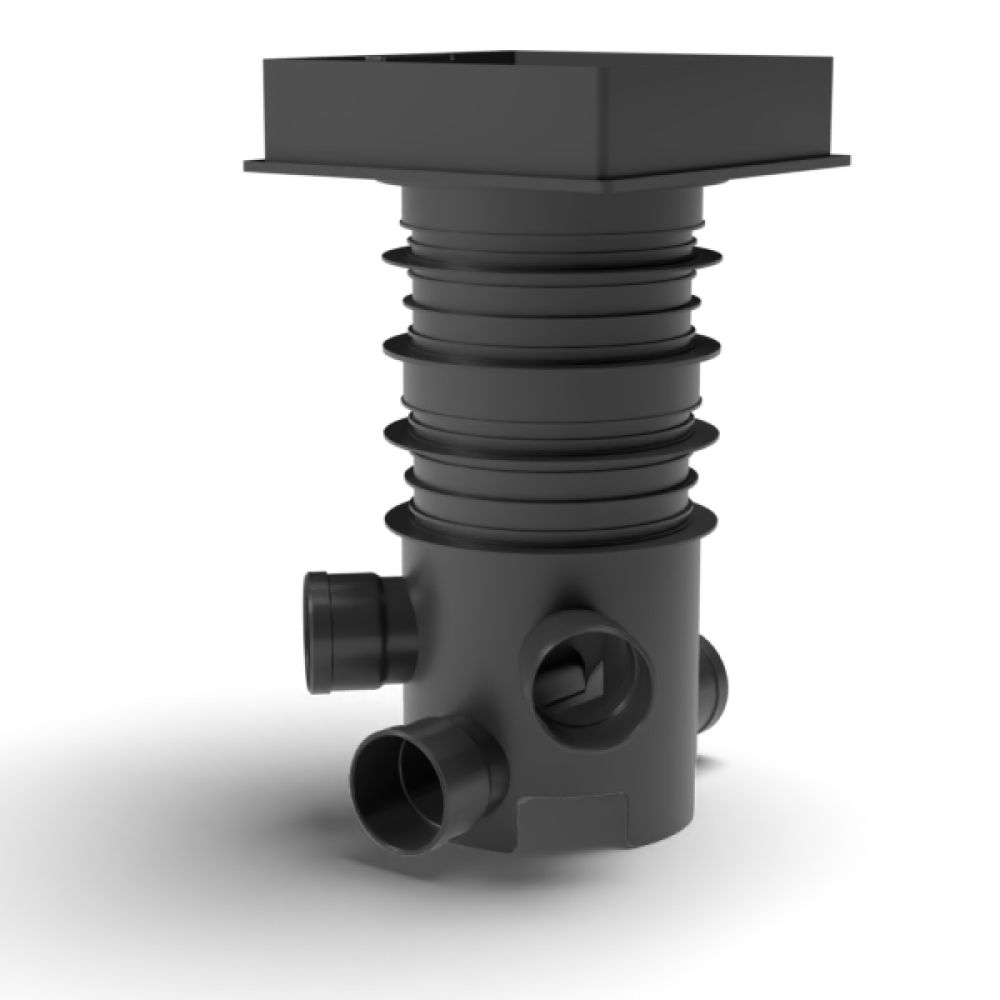

300mm Mini Inspection chamber set with a block pavior manhole cover.

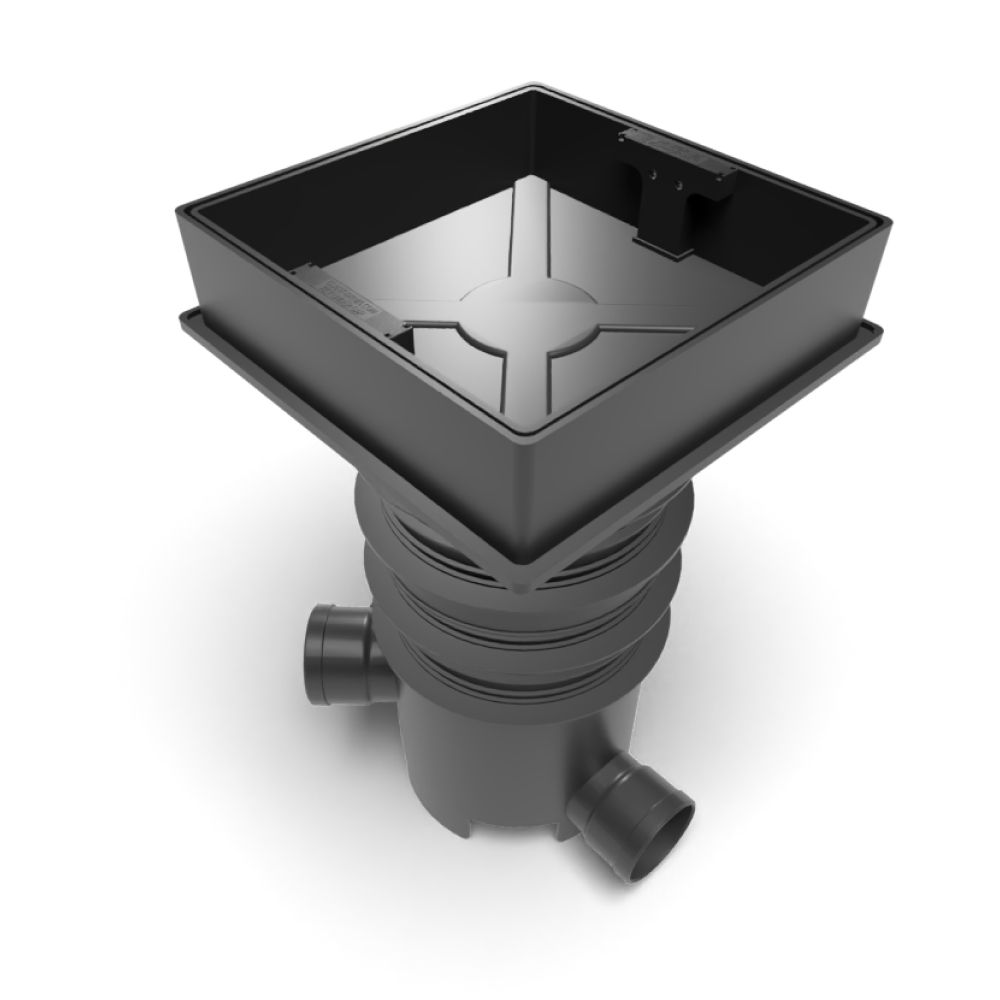

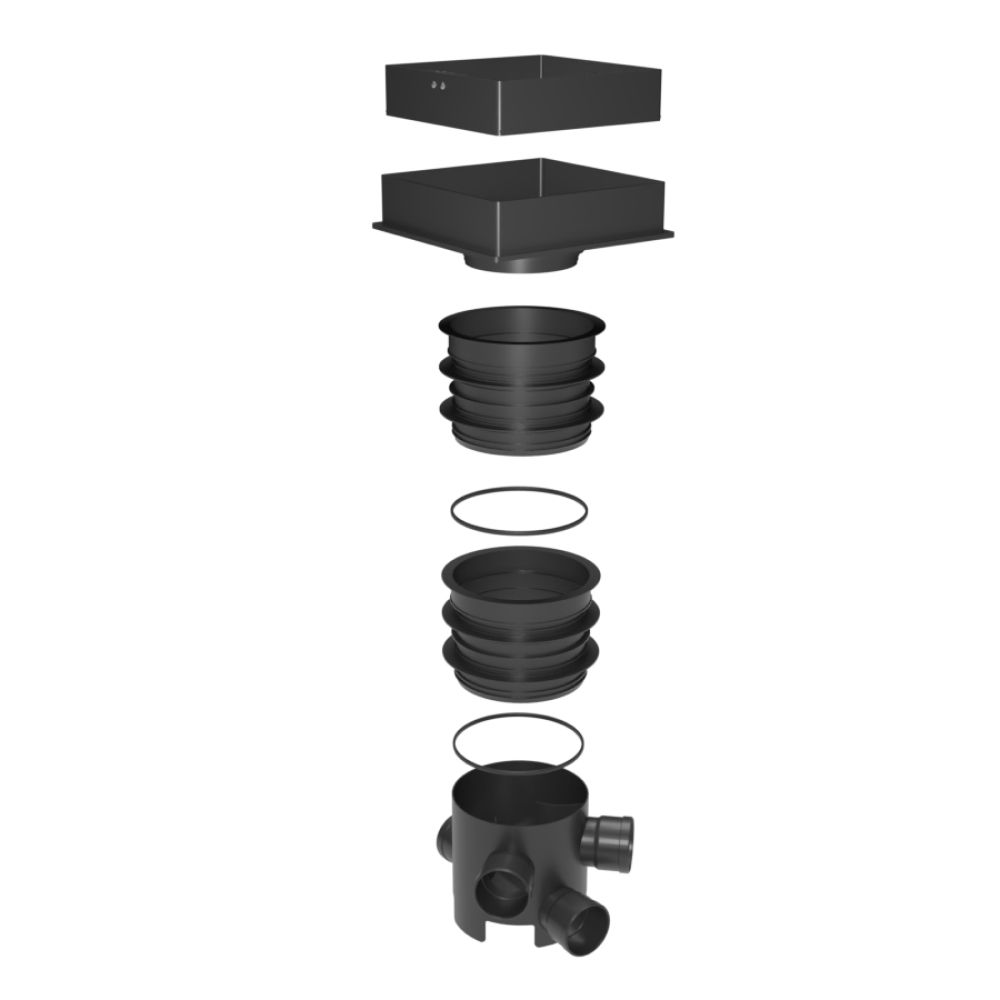

This chamber set includes all of the components required to form a 300mm mini inspection chamber - one base section, two 200mm sectional risers and a square cover and frame which is an 80mm recessed cover, ideal for paviors or paving slabs.

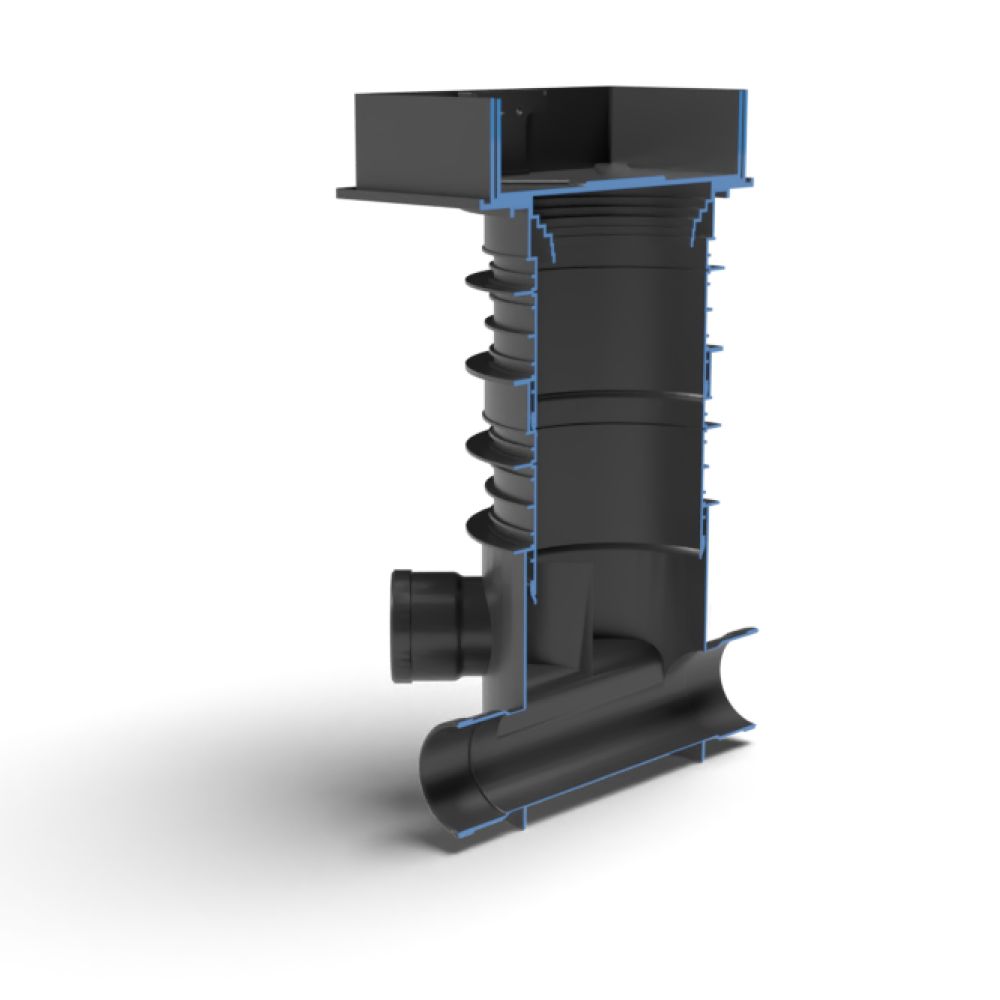

The overall depth of the chamber from the invert level to the top of the manhole cover is 800mm. If you need to make small adjustments to the height then the sectional risers may be cut to size using a standard fine-toothed saw.
The main channel of the base is left open and the side inlets are blanked off with integral blanking plugs - simply remove the blanking plug by pushing it out from within the base to open and use the side inlets.
The cover has a 35Kn load rating making it suitable for use in domestic driveways.
For a quick overview of this product please watch the short video below;
