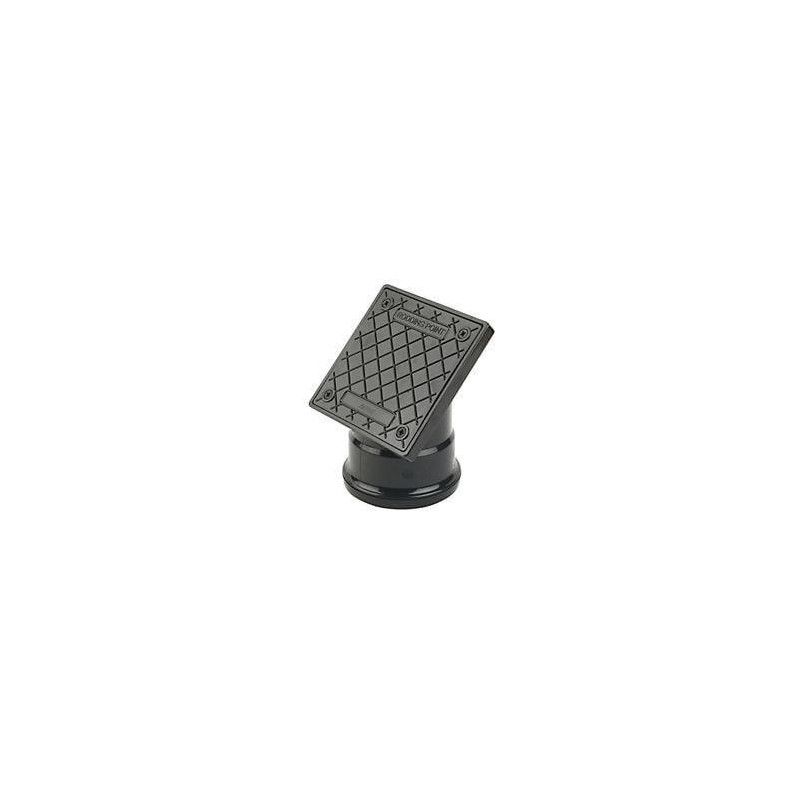

FloPlast Drainage Rodding Point - 110mm
In stock
Code
D884
From 8 reviews
| Code | D884 |
|---|---|
| EAN Code | 5055149925795 |
| Weight (kg) | 0.685000 |
| Brand | FloPlast |
| Colour | Black |
| Material | PVC-u |
| Guarantee | 10 Year Manufacturer Guarantee |
| Specification | BS4660:2000 |
| Size | 110mm |
Rodding points, or rodding eyes as they are sometimes called, are used to allow access into a drain for inspection and cleaning.
Rodding eyes are almost always used in conjunction with storm water (surface water) drains. They should always be located in an upstream position to ensure that any blockages that are cleared flow downstream.
The rodding point is completely airtight, access is provided by removing the four screws which secure the main plate.

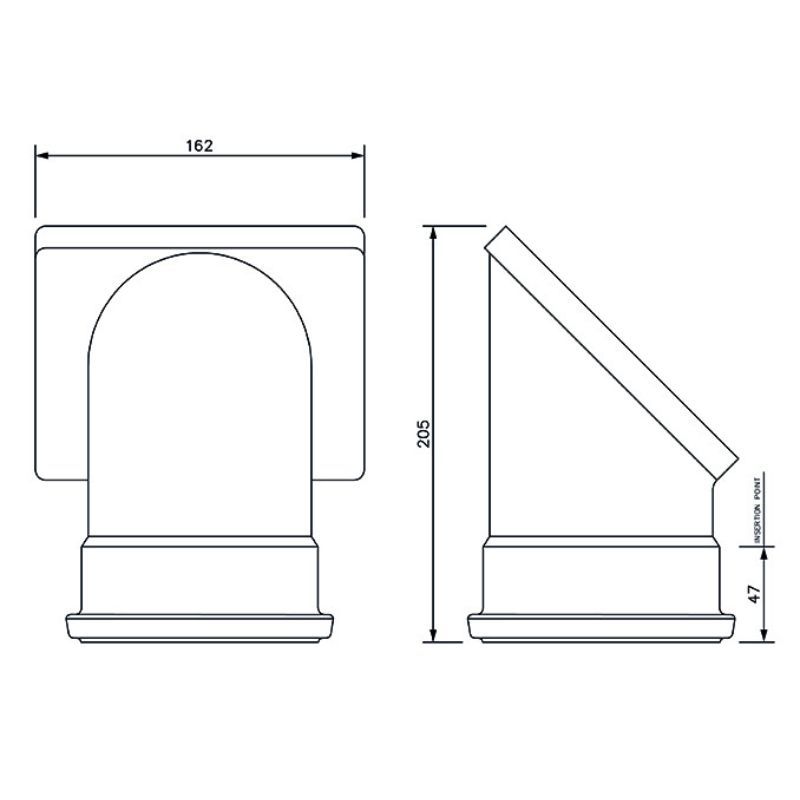

The rodding point incorporates a ring seal socket at 45 degrees to the inspection plate. This is to enable connection to the main drain run via a 45 degree branch and a short length of pipe. 45 degree rodding eyes are usually in conjunction with an RTY4 45 degree triple socket branch.
